Fiberglass Trough & Launder Trough Systems
Enduro® FRP LAUNDER TROUGHS
Engineered for high loads and corrosion resistance, Fiber Reinforced Polymer (FRP) launder troughs give operators a superior, low maintenance structure to regulate and move fluids efficiently through treatment processes. Troughs are custom-designed by Creative Composites Group (CCG) for round or rectangular tanks, allowing you to single-source your entire clarifier system.
Fiberglass Water Troughs Deliver Outstanding Strength & Corrosion Resistance

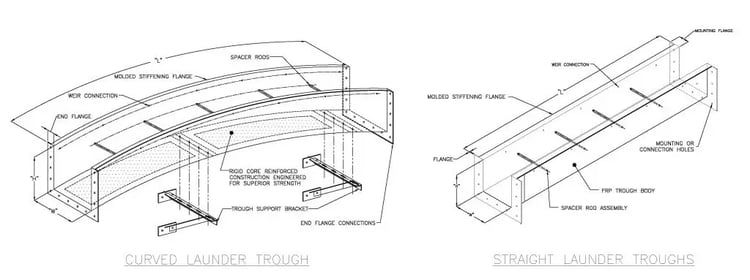

Our composite troughs are built with laminated layers of 24-ounce woven roving throughout, making them 50% stronger than conventional 1/4” units. Its glass fiber reinforcing content and alignment produces outstanding rigidity and the ability to support higher loads with minimal deflection. Designs also include stiffening flanges, spacer rods and slip join or flanged connections.
Its laminate construction can include embedded steel or FRP angles at the sides or bottom for increased lateral stability, in addition to the internal core of end-grain balsa, foam or structural polypropylene panels. Material thickness is increased to 150% in critical areas such as flanges, closed blind ends, support connections and more for compliance with AWWA requirements.
Benefits Include:
- Exceptional Strength and Stiffness
- UV Protection
- Long, Maintenance-Free Service Life
- Efficient Fluid Flow
Enduro Launder Troughs are Custom-Manufactured for a Wide Range of Applications, Accommodating:
- Size Variety
- Configuration Variety
- Bottom Shape Options: Flat, Round or V
- Weir Shape Options: Circular, Straight or Finger
- Tank Shape Options: Round, Square or Rectangular
For Influent or Effluent Applications, Fiberglass Launder Trough uses Include:
- Grit Separation
- Aeration
- Settling Basins
- Primary and Secondary Clarifiers
- Sludge Thickening
- Gravity Filter Backwash Tanks
All Trough Systems Come Complete With:
- FRP, Stainless Steel or Galvanized Steel Supports
- FRP Weirs and Scum Baffles
- FRP Effluent Outlet Boxes
- Spacer Rods
- A Full Complement of Stainless Steel Fasteners and Anchors
Fiberglass Trough Quality Assurance & Certifications
Enduro fiberglass troughs are NSF 61-approved for drinking water use and are manufactured to ANSI/AWWA F101-13 Standard for Contact-Molded, Fiberglass-Reinforced Polymer Wash-Water Troughs and Launders. Our FRP products are manufactured under an ISO 9001-certified quality assurance program to ensure outstanding performance for water and wastewater operations.
