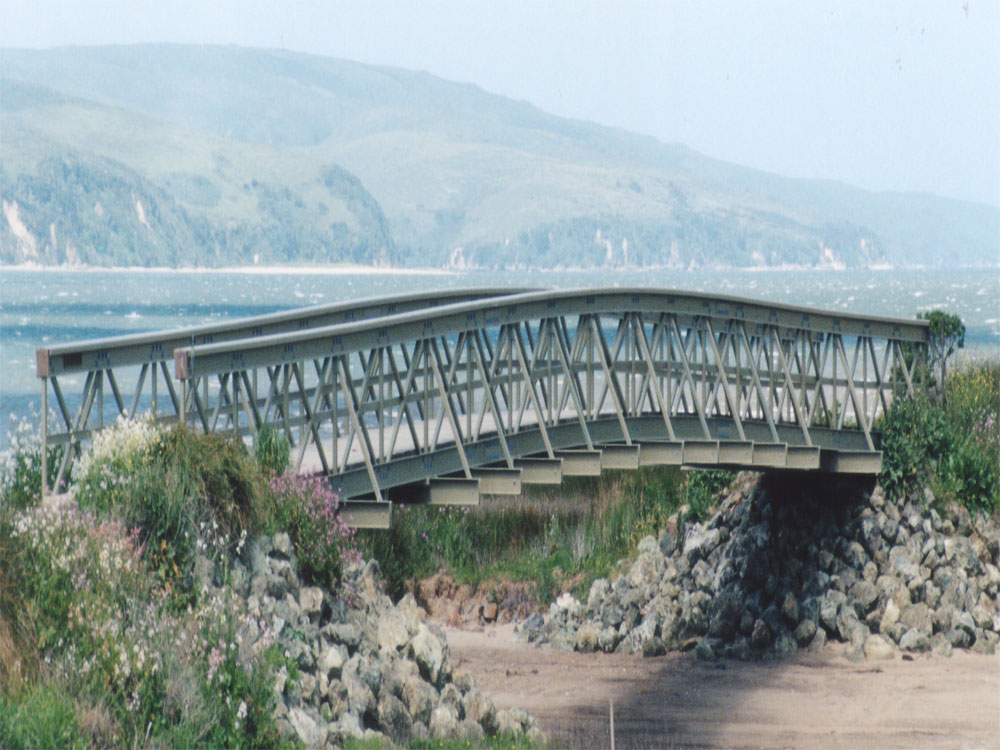

Audubon Canyon Ranch - Marshall, CA

Location: Marshall, CA
Type: Specialty
Span: 96'-0" x 6'-0"

Design Specifications:

• Pedestrian bridge
• Design live load = 60 psf
• Fiberglass support trusses (two diagonals/panel)
• 42” handrail height above decking
• Straight end design
• Top cap
• Horizontal safety midrails providing 9” max. opening
• A307 galvanized steel bolts
• Custom 3% camber
• Creative Pultrusions, Inc. Series 1500 Olive Green color
• Galvanized steel mounting clips
• 2” x 12” #2 pressure treated Southern Yellow Pine decking
• Trusses shipped assembled/other components unassembled
